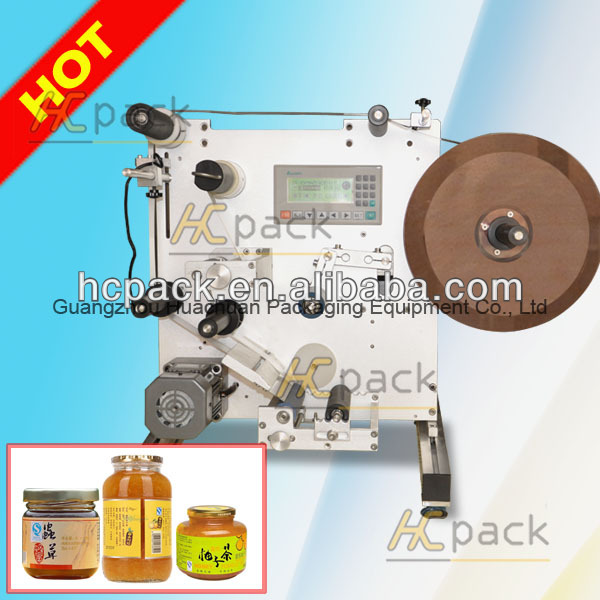

Semi-automatic Self-adhesive Round Bottle Labeling Machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Labeling Machine
Condition:
New
Application:
Food, Beverage, Medical, Chemical
Packaging Type:
Bottles
Packaging Material:
Plastic, Glass
Automatic Grade:
Semi-Automatic
Driven Type:
Electric
Voltage:
220V/50HZ
Power:
120W
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HC-pack
Model Number:
HCT-10
Dimension(L*W*H):
about 750*-500*550mm
Weight:
About 35kg
After-sales Service Provided:
Engineers available to service machinery overseas
Bottle Diameter:
20-100mm
Bottle Height:
50-150mm
Labeling Speed:
10-30bots/min
Labeling Precision:
±1mm
Environment temperature:
0-50℃
Relative humidity:
15-90%
Min label length:
10mm
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
packaging size: about 750*-500*550mm
package: packed in wooden case with well supported materials wrapped
Lead Time :
within 25 working days

Specifications

1.single-face or circle labeling
2.PLC control
3.no bottle no labeling
4.with a mucilage thickness adjustment device

Main use:



    The machine is widely used for single-face or circle self-adhesive labeling round bottles in food, medicine, cosmetics and so on.



Main features and performance:



  1. This labeling machine is controlled by PLC, operated by a text editor and detected by photoelectricity with excellent appearance;
  2. Menu allocation is convenient and swift with flexible function options;
  3. This machine is equipped with a mucilage thickness adjustment device to achieve “no bottle no labeling”;
  4. It can label both one side of one bottle and double sides of one bottle;
  5. The outer parts of this labeling machine are made of high-quality 304 stainless steel or dealt with plastic spraying with high anti-corrosion.

Main technical parameters:



Model

HCT-10

Bottle Diameter

Φ20-100mm

Bottle Height

50-150mm

Labeling Speed

10-30bots/min

Power

Pressure :220V/50HZ     Power :120W

Labeling Precision

±1mm

Weight

About 35kg




Machine Packing:
