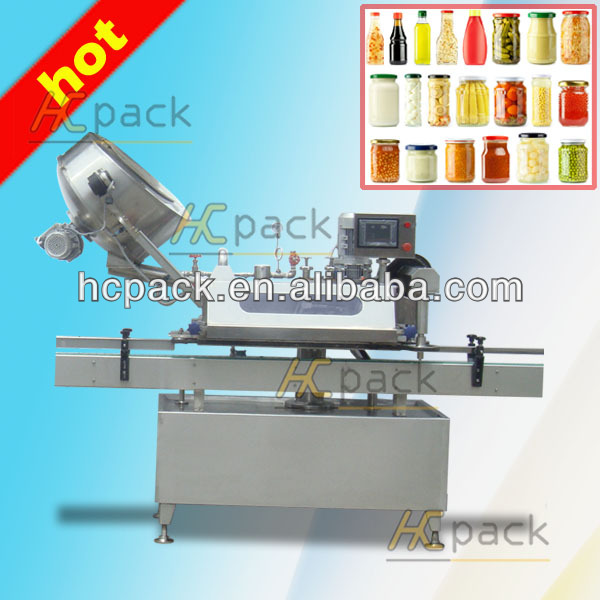

Automatic cap screwing machine

FOB Reference Price:Get Latest Price
US $18,888-20,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Capping Machine
Condition:
New
Application:
Beverage, Chemical, Food, Medical
Driven Type:
electric & pneumatic
Automatic Grade:
Automatic
Voltage:
220V/50HZ
Power:
2000W
Packaging Type:
Bottles
Packaging Material:
Glass
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HC-pack
Model Number:
HCXG-250B
Dimension(L*W*H):
2800*1150*2000mm
Weight:
About 1100kg
After-sales Service Provided:
Engineers available to service machinery overseas
Capping speed:
80-150bots/min
SupplyAbility
SupplyAbility:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
packaging size: about 2800*1150*2000mm
package: packed in wooden case with well-supported materials wrapped

Automatic sewing machine

Main use:



    The machine is widely used for full-automatic vacuum screwing glass bottle cap in foods & beverage, sauce, medicine, chemicals industries and so on.



Main features and performance:



     1. The vacuum capping machine is combined with automatic cap arranging, covering and steam spraying and vacuum screwing, featuring fast speed, high efficiency, reliable and stable operation;

     2.  Photosensor, approximate switch and other elements are products of international famous brand which can make sure no filling when no bottle and reliable cap covering;

     3.  Due to its strong adaptability and convenient adjustment, this machine can fill different types of bottles without changing many components;

     4. The frame and body of machine are made of high-quality stainless steel integrated with the electric and pneumatic components which are world- renowned brands of low failure rate, stable performance and long service life.

     5. Using rub type screw cap makes this capping machine own a reasonable structure, stable and reliable performance, high working efficiency and helps solve some disadvantages such as skidding and attrition of caps



Main technical parameters:



Model

HCXG-250B

Cap diameter

φ28-φ50mm φ50-φ85mm

Bottle Diameter

Φ28-110mm

Bottle Height

60-280mm

Capping speed

80-150bots/min

Power

Pressure :220V/50HZ   Power :2000W

Dimension

2800*1150*2000mm

Weight

About 1100kg

 Machine Packing:

 Our Factory Photo:
